Despite the clear benefits of liquid cooling over air cooling, it never became mainstream. It was too costly and too cumbersome to maintain and install. That is about to change. The market for liquid cooling has reached an inflection point and the chip cooling ecosystem is about to be disrupted.
In this whitepaper, our Partner Bert Gyselinckx explains why - and what comes next.
This summary highlights the key insights, you can view the full whitepaper here.
The first liquid-cooled computers that grabbed my attention were gaming machines, back in the early ‘90s. Games like Prince of Persia and Wolfenstein were just getting into 3D rendering mode, and avid gamers needed all the CPU speed they could get to make these games playable in real time. So, gamers started overclocking their CPUs: they installed faster clocks in their PCs to get additional horsepower for their 3D games. Making the processors run faster also meant making them run hotter. So much so that a traditional air fan provided insufficient cooling. To avoid thermal meltdown of the processors and graphics cards, they turned to liquid cooling.
Many things have changed since then, but the physics and potential of liquid cooling for chips have remained the same. Liquid cooling is more efficient than air cooling because liquid has a higher heat capacity and thermal conductivity than air. This means it can carry away heat more effectively, allowing for better chip cooling.
Despite the clear benefits of liquid cooling over air cooling, it never became mainstream. It was too costly and too cumbersome to maintain and install. That is about to change, big time. Artificial intelligence (AI) and high-performance computing (HPC) drive this change. I believe that the market for liquid cooling has reached an inflection point and that the chip cooling ecosystem is about to be disrupted.
Current AI accelerator chips like the AMD MI300 or the NVIDIA H100 have a thermal design power (TDP - a metric for how much power needs to be drawn away from the chip to remain operational) of around 500W. This is about the limit of what very advanced air cooling can deliver. Moreover, such chips are usually assembled on larger blades that go into a server rack. Such racks now have a total power consumption of several 10s of kWs. Again, at the limit of what air cooling can supply. So, either designers find a way to make those AI chips more power efficient and run cooler, or we need to find a better way to cool the next generation of more performant and power-hungry AI chips and server racks.
Many attempts are ongoing to design more power-efficient AI chips, ranging from in-memory computing via analog to optical computing. This topic justifies a separate analysis. In this article, we will take a closer look at the different cooling options.
Liquid cooling comes in many guises. The most common technique used today is a so-called cold plate. These are direct replacements for air heatsinks, those metal fins you see when opening your computer, sometimes also containing a fan. Replace the fan with a pump and the air with a liquid, and you will have a single-phase liquid cold plate. Obviously, the liquid must be carefully contained inside the heatsink to not damage the electronics. A similar scenario applies when the liquid effectively evaporates under the chip’s heat. Such a system is known as a two-phase cold plate. Liquid cold plates provide a lower thermal resistance to heat transfer than a traditional air fan. This means they can dissipate more heat with minimum rise in the chip’s temperature.
Ultimately, the best solution is to eliminate the thermal barriers and bring the coolants closer to the chip. A first option is to directly spray a liquid on the backside of the chip as demonstrated by imec. These so-called jet impingement coolers spray cold liquid directly onto the backside of the chip, with a higher flow rate for more cooling, targeting the hottest parts of the chip. The coolants are in direct contact with the chip, providing more effective cooling than traditional cold plates. Disadvantages are that care has to be taken so that the liquids do not interfere with the electrical operation of the chip and that thermal warping can occur, leading to mechanical yield issues.
An alternative, potentially even more effective approach, is to bring the liquids directly into the chip substrate as demonstrated at EPFL and at TSMC. With this approach, microchannels are etched into the substrate. These provide very close access for the liquids to the hot transistor junctions, reducing the thermal resistance and increasing the efficiency of this cooling method. A drawback is that such channels may impact the electrical performance of the transistors as well as the mechanical stability of the die.
An alternative method involves submerging the entire server in a dedicated dielectric liquid. This technology is known as immersion cooling. Such systems can use a single-phase or two-phase cooling loop, depending on whether the server’s heat transfer changes the phase of the dielectric liquid. Because of the direct contact of the liquids with the chips, these systems can be very effective coolers. Their disadvantage is the size and weight of the liquid baths containing the servers, which requires drastic design changes in data centers. Maintenance and uptime are also often cited as concerns when it comes to immersion cooling.
Recently a cross-over promising the best of cold plates and immersion systems is emerging. Companies like Ferveret and Iceotope have come up with solutions in which compute blades are individually submerged in stand-alone liquid-cooled chassis. These systems combine the efficiency of immersion cooling with the modularity of cold plates.

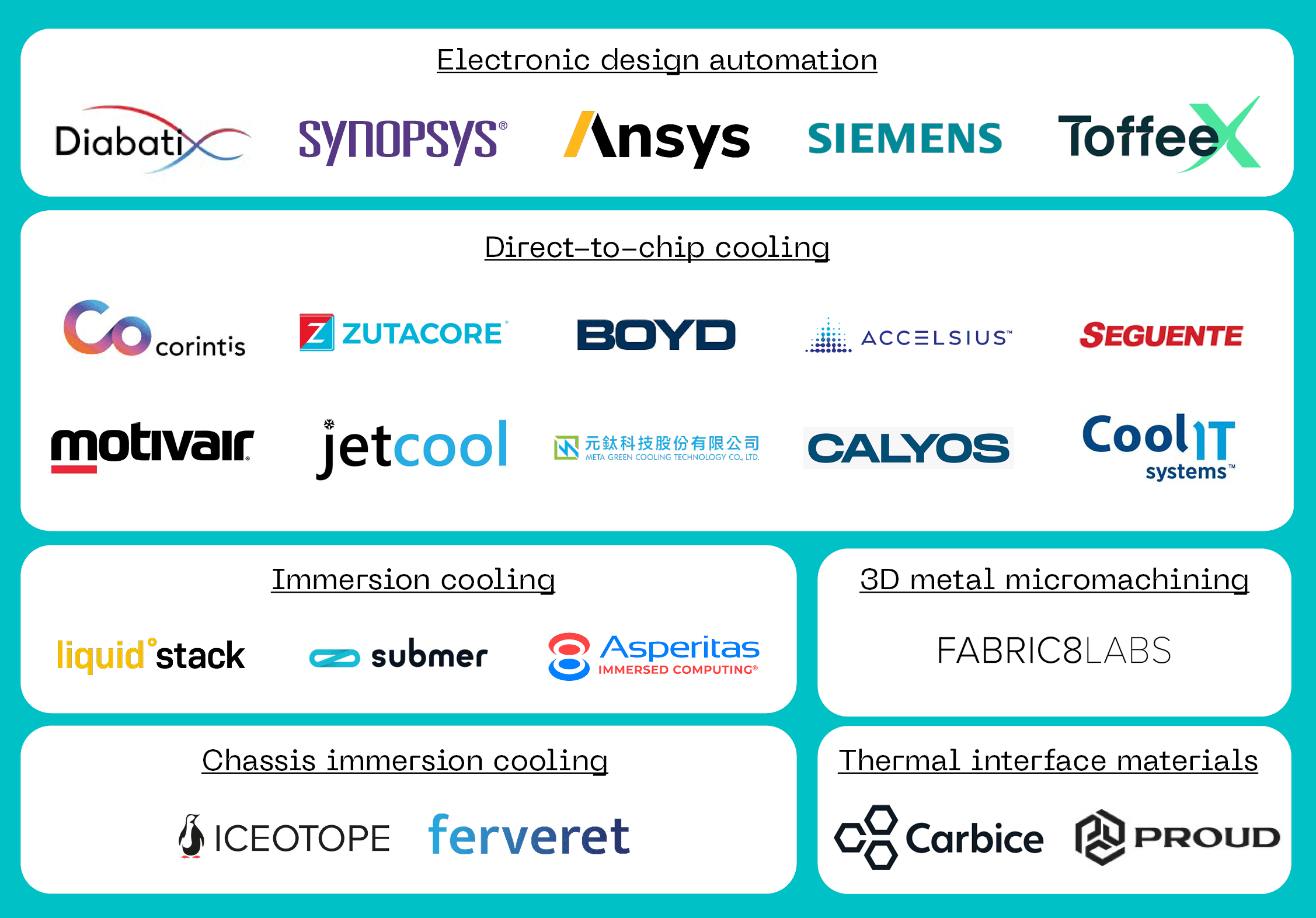

The liquid cooling market for AI data centers is emerging. The market is highly fragmented, with primarily players developing subsystems of the overall cooling solution, such as electronic design automation, direct-to-chip cooling solutions, immersion cooling, thermal interface materials and metal micro-machined parts.
Market research firm Dell’Oro predicts that “between 2023 and 2028, the overall thermal management market (comprising both air- and liquid-cooling systems) will expand at a 14% CAGR to reach $12 billion. Of that $12 billion, liquid-cooling solutions - including direct, immersion, and rear-door heat exchanger systems - are expected to account for $3.5 billion by 2028. The need for air cooling is not going away, but liquid cooling is what’s going to rapidly grow in the market, at a CAGR over 40%.”
I expect to first see more advanced cold plate products from vendors such as JetCool and Corintis. These cold plates are modeled and designed with the help of generative AI software from vendors such as Diabatix, ToffeeX, and Ansys. The intricate channel structures needed for advanced modern cold plates will require advanced 3D metal printing by highly specialized companies. Fabric8Labs - with its electrochemical additive manufacturing process - is in pole position to claim this market. The chassis-based immersion cooling solutions from the likes of Ferveret and Iceotope may also see adoption for dedicated on-prem servers with a very high compute load. All of these systems will require limited additional data center infrastructure in the form of coolant distribution units and a way to chill the coolants. These cooling systems will command a premium price of several $100 - maybe even over $1000 - per chip and will, therefore, target the more advanced chips with the most significant cooling needs.
Once the market matures, I believe cooling will become an integral part of the chip package and be supplied by the OSATs (Outsourced Semiconductor Assembly and Test) such as ASI and Amkor. Today, we already see OSATs delivering chips in lidless packages to allow better contact with the die for better cooling. By 2028, we expect the more advanced AI accelerator chips to come with chip packages that include liquid cooling. These packages will offer better performance than add-on cold plates because they bring the cooling closer to the chip. Moreover, these packages will be more affordable and reliable than cold plates because they are mass-produced in conjunction with the underlying AI chips at an OSAT. Since such packages can bring coolants in direct contact with the chip, they can offer a similar performance as immersion cooling without the significant infrastructure changes immersion requires.
The next frontier could be to add cold micro-channels into the chips’ substrates. First experiments have shown these to be extremely efficient while they are also scalable because designed at wafer scale. Further research and development will be needed to make such systems reliable and cost-efficient. The earliest I would expect this in mass-volume production ICs would be by 2030, and then only if the OSAT-provided chip-cooled packages no longer provide sufficient cooling for the power requirements of some of the high-value, high-power chips.
AI is hot. And the chips delivering it even hotter. Liquid cooling will be a big part of future AI chipsets and data centers alike. A well-designed cooling system will directly impact both the cost and performance of future AI systems. I believe that at first, we will see various types of custom cold plates entering the market and getting integrated by rack integrators. We see early examples of such collaborations between Gigabyte and CoolIt, as well as between Dell and Jetcool. As the market grows, we will see further standardization of chip packages with built-in liquid cooling. This will reduce the cost of such systems, increase their reliability, and ultimately lead to mass adoption.
This is a summary of Bert Gyselinckx' whitepaper on the future of liquid cooling.
You can read the complete whitepaper (in pdf) by clicking here.
